- 79 keys
- RGB backlighting rated for the life of the product (20,000 hr LEDs)
- Low-cost, ultra-rugged keyboard
- Low-profile with ergonomic design and feel
- Slim, small-footprint space-saver
- Tactile, low-travel key switches allow for faster actuation
- Embedded multi-media functionality
- Chemical-resistant engineered plastic resin housing and keycaps
- Splash-proof touchpad with 2 sealed mouse buttons
- 10 million actuations per key
- VESA 75 and AMPS mounting options are standard
- Ideal for mobile mounting solutions
- Backlight dimming ideal for nighttime or ambient-light use
- Proven quality and a 3-year warranty

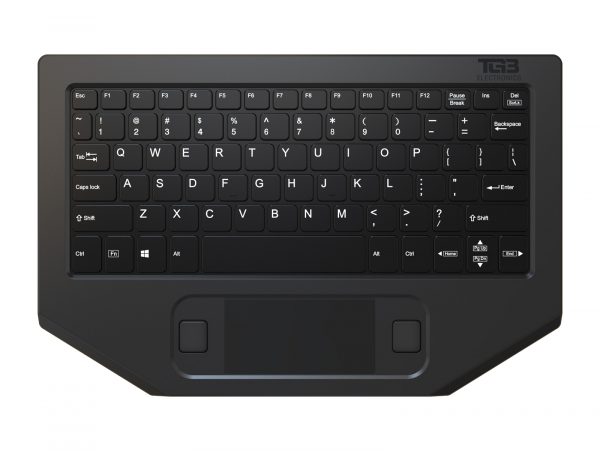

BLTX Mini rugged, low-profile keyboard (top view)
BLTX Mini rugged, low-profile keyboard (isometric view)
BLTX Mini rugged, low-profile keyboard (isometric, stacked view)

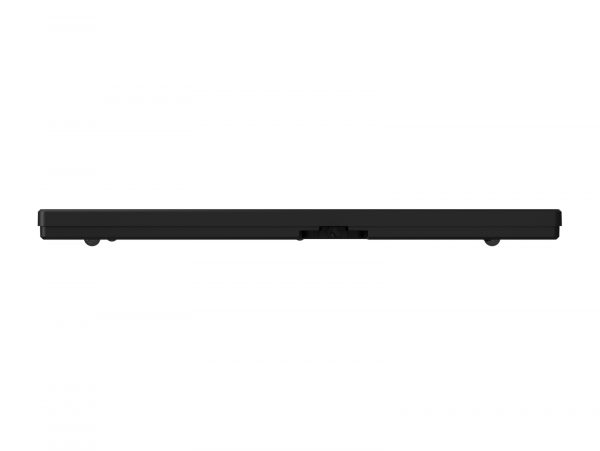

BLTX Mini rugged, low-profile keyboard (back view)
BLTX Mini rugged, low-profile keyboard (bottom view, with USB)
BLTXR: Low-Profile Keyboard with Center Touchpad
Rugged, low-profile rubber keyboard designed for public safety and mobile data applications
Compliant
- FCC
- CE
- RoHS
Electrical Specifications
- Voltage: +5Vdc @ 500mA max from data cord (USB variant)
- Compatible with root USB ports (on PC) or self-powered hubs (USB variant)
- Radiated immunity: 20 Volts / meter
- X/Y position resolution: 500 points / inch (20 points max)
